Product Description

Model: DIYM236HPW07D01



The High-Power Dual-Zone MRCOOL System Built for Large Rooms — With Perfect Line-Set Flexibility

The MRCOOL DIYM236HPW07D01 is the ideal multi-zone system for homeowners who need serious heating and cooling power in two large rooms — but with different distances to the outdoor unit. This bundle includes two 18,000 BTU air handlers plus two Quick-Connect line sets (16 ft + 25 ft), giving you the flexibility to install each indoor unit exactly where you want it.

This is one of the strongest 2-zone DIY bundles MRCOOL makes, delivering premium performance, ultra-quiet operation, and true do-it-yourself installation without vacuum pumps or refrigerant handling.



Why This Bundle Is the Perfect Fit for Large Spaces

✔ Two Powerful 18K Air Handlers

Each indoor unit covers up to ~800 sq ft, making this setup perfect for:

• Oversized master bedrooms
• Great rooms
• Living rooms
• Workshops
• Finished basements
• Home offices
• Garages or ADUs

This depends on your insulation, windows, ceiling height.



✔ Mixed Line Set Lengths = Maximum Freedom

You get:

• (1) 16ft – DIY16-1412-O
• (1) 25ft – DIY25-1412-O

So you can place each indoor unit at the correct distance — no extra coils, no messy loops, and no performance loss.



✔ 100% DIY Installation

Every component is factory pre-charged with R-454B, the new low-GWP refrigerant.

Just tighten the Quick-Connect fittings — no special tools required.



✔ SmartHVAC Technology Built In

Control the whole system from:

• MRCOOL App
• Amazon Alexa
• Google Assistant
• Remotes
• Programmable schedules



Component Details

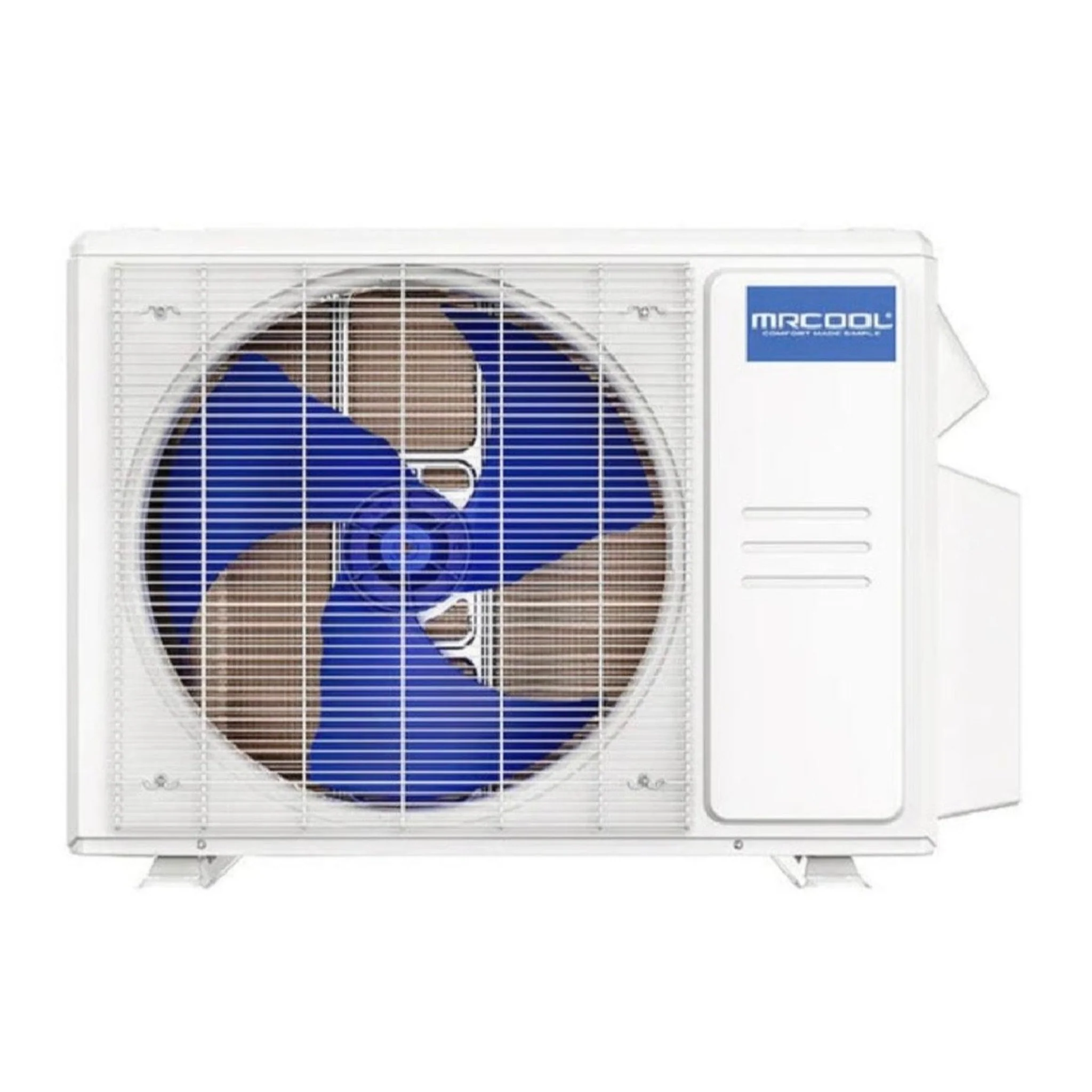

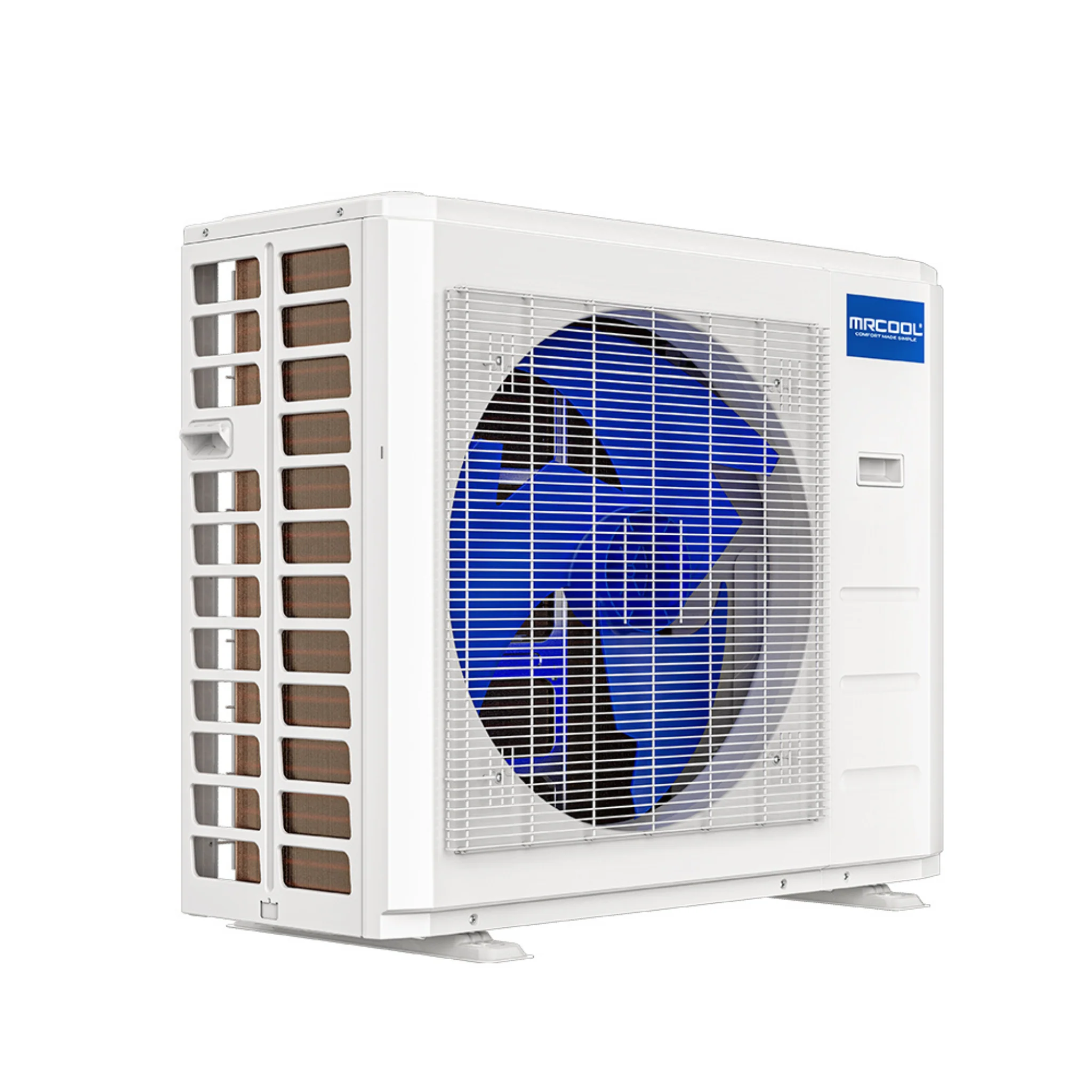

36K 5-Zone Condenser – DIY-MULTI5-36HP230D-O

• 34,000 BTU cooling
• 36,000 BTU heating
• 23 SEER2
• R-454B refrigerant
• Supports up to 5 indoor units
• Gold Fin® corrosion-resistant outdoor coil
• Whisper-quiet DC inverter
• Max Breaker: 35A
• Min Circuit Ampacity: 30.5A

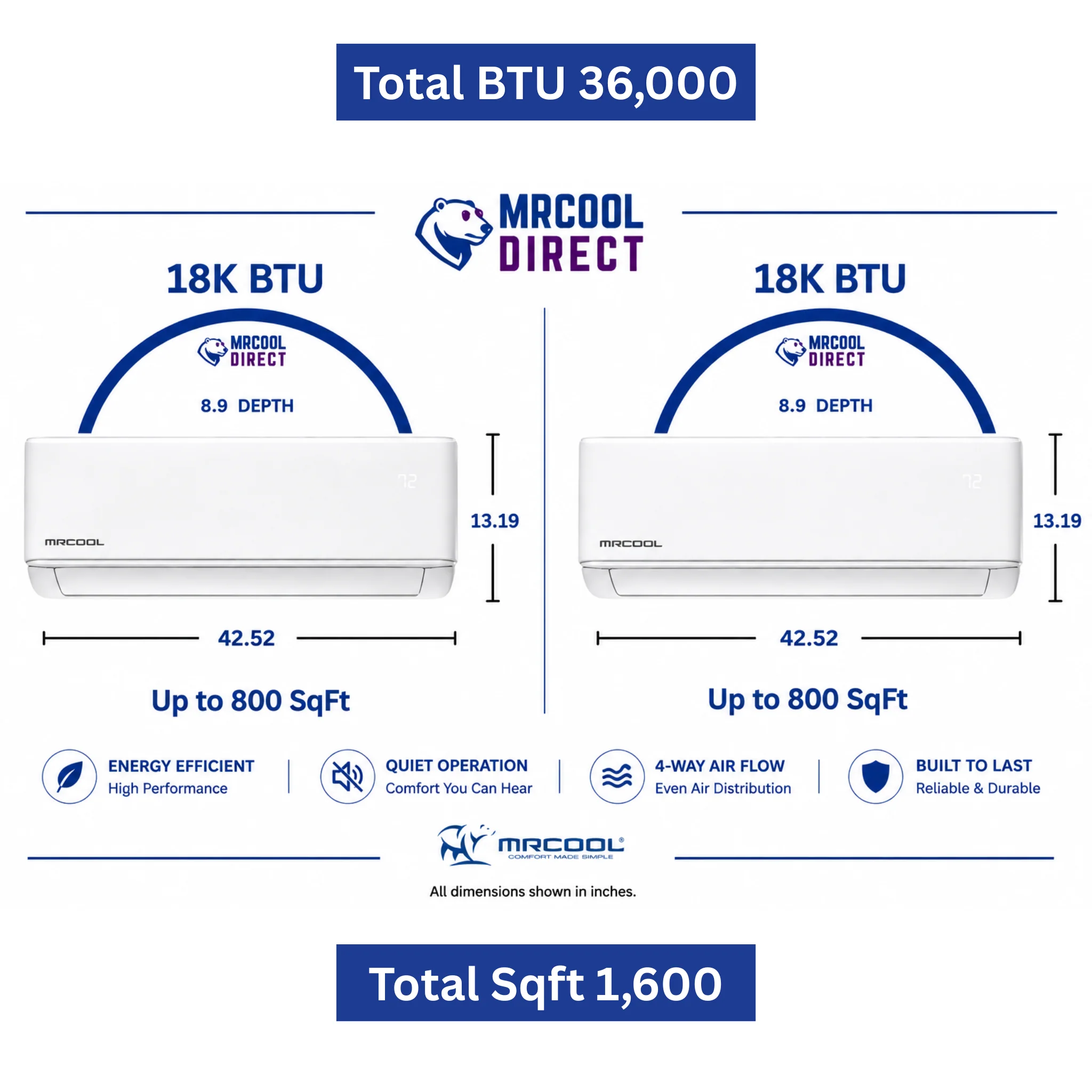

18K Air Handlers – DIY-18-HP-WMAH-230D25-O (Qty 2)

Each provides:

• Up to 800 sq ft cooling/heating
• Whisper-quiet multi-speed fan
• Follow Me® temperature tracking
• Dry Mode for humidity control
• SmartHVAC WiFi
• Energy Star performance
• Auto-restart & sleep mode



Line Sets

(1) 16 ft 1/4 × 1/2 Pre- Charged Line Set – DIY16-1412-O

(1) 25 ft 1/4 × 1/2 Pre- Charged Line Set – DIY25-1412-O

Both include:

• R-454B pre-charge
• Quick-Connect fittings
• Copper + insulated design
• Zero refrigerant handling
• No vacuuming required



❄️ System Coverage

• 18K + 18K zones
• Combined total conditioned area: Up to ~1,600 sq ft across two rooms



Key Features

• Energy Star Certified
• Low-energy inverter heat pump
• Works in hot and cold climates
• Fast DIY setup
• Whisper-quiet indoor & outdoor operation
• 5-year parts / 7-year compressor warranty
• Eligible for the  MRCOOL® Care Program (see MRCOOL terms).

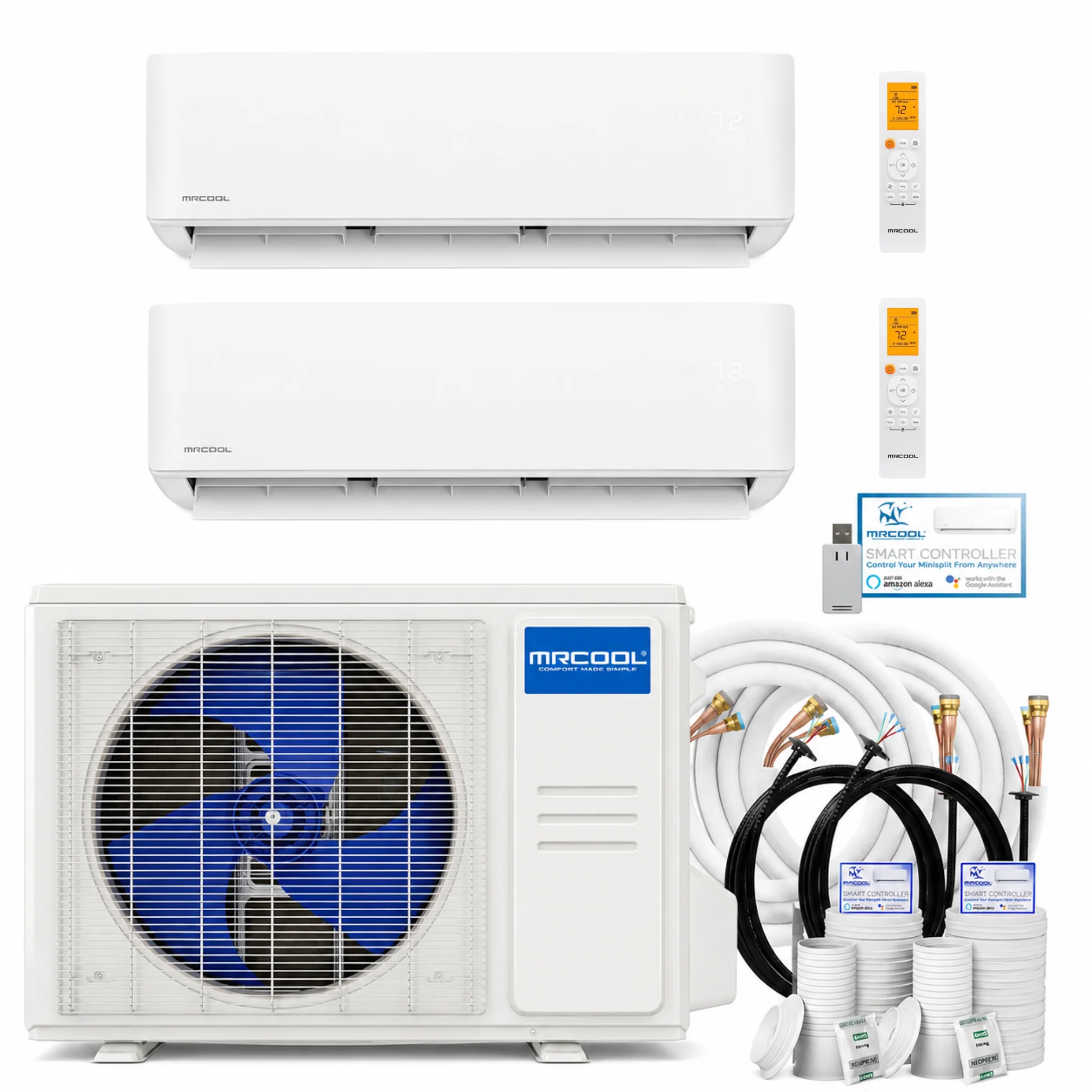

📦 What’s Included

• (1) 36K Multi-Zone Condenser
• (2) 18K Wall-Mounted Air Handlers
• (1) 16ft Quick-Connect Line Set
• (1) 25ft Quick-Connect Line Set
• (2) Remotes
• (2) DIYPro® cables
• Mounting hardware
• Manuals



(FAQ) Frequently Asked Questions

Do I need an HVAC tech?

No — this is fully DIY with pre-charged line sets.



Can I expand later?

Yes — 3 more indoor units can be added anytime.



Does the system heat well in winter?

Yes — the inverter delivers reliable cold-weather performance.



Are both rooms controlled separately?

Yes — each 18K zone has its own remote + full app control.
