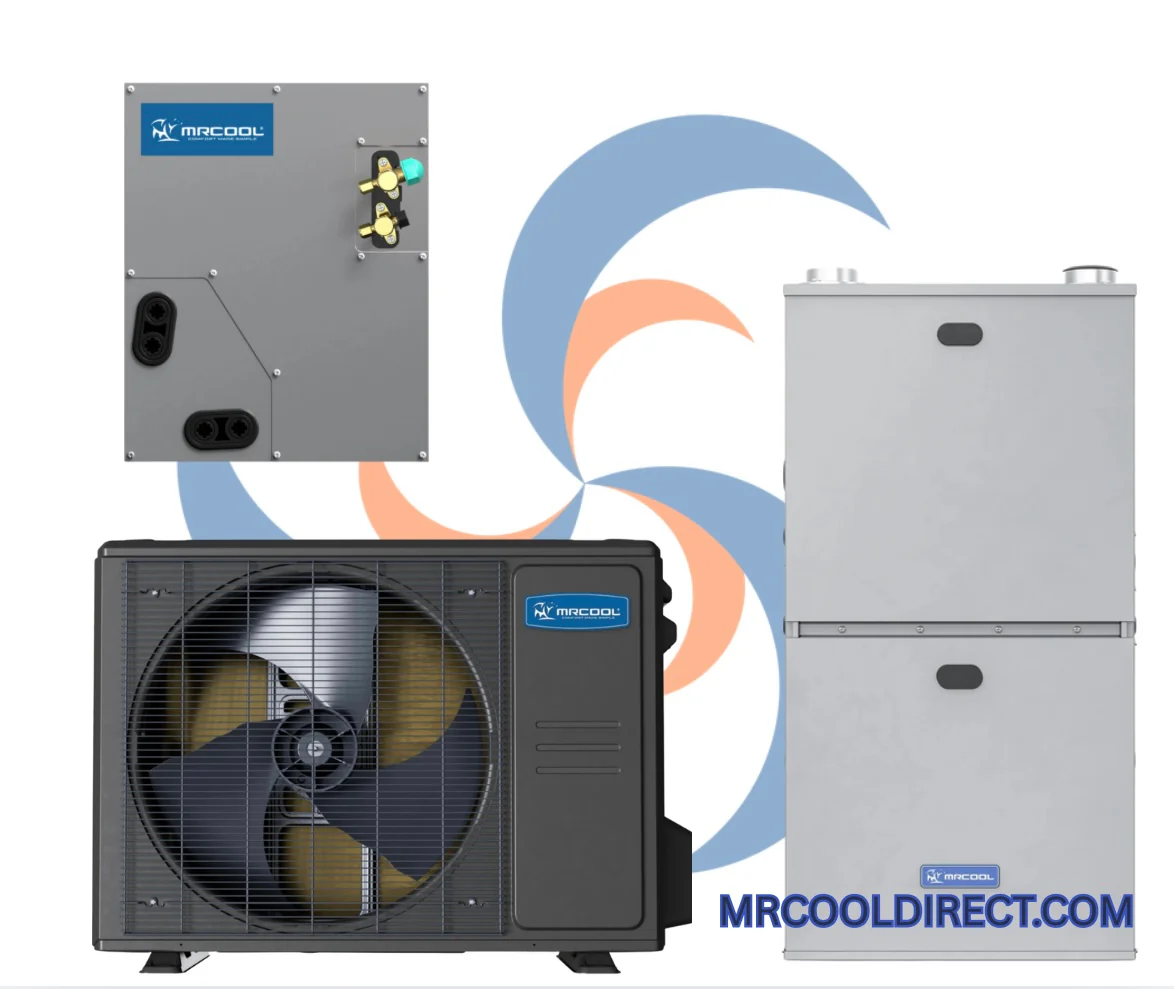

MRCOOL® 2 Ton Central Universal Air Conditioner and 96% AFUE, 80K BTU 17.5" Gas Furnace Split System - Upflow, Horizontal

Product image 1
1 / 4

MRCOOL® 2 Ton Central Universal Air Conditioner and 96% AFUE, 80K BTU 17.5" Gas Furnace Split System - Upflow, Horizontal

PRODUCT DESCRIPTION

The 2 Ton MRCOOL Central Air Conditioner and Gas Furnace System is the advanced heating and cooling solution designed to keep you comfortable year-round. This system offers robust cooling through the MRCOOL condenser, combined with the efficiency of a gas furnace, delivering 96% AFUE with 80K BTU heating. R-454B Refrigerant

System Includes

  • MRCOOL 2 Ton Universal - Heat Pump Condenser
  • MRCOOL 96% AFUE 80K BTU Multi-Position Furnace up-flow and horizontal.
  • MRCOOL 2 Ton A-Coil

Key Features

  • Compatible with No-Vac Pre-Charged Line Sets
  • Supports upflow, downflow, and horizontal left & right configurations
  • Pre-charged coil eliminates the need for on-site charging
  • A2L leak detection sensor for safety and peace of mind
  • CoolGuard and Gold-Fin corrosion resistant casing
  • Built in TXV

WHAT'S INCLUDED

  • Pre-Charged "A" Coil  MCMP1824BOTB
  • Condenser   UHP18024-O
  • Gas Furnace  MGM96EE080B3NB

Specifications Below

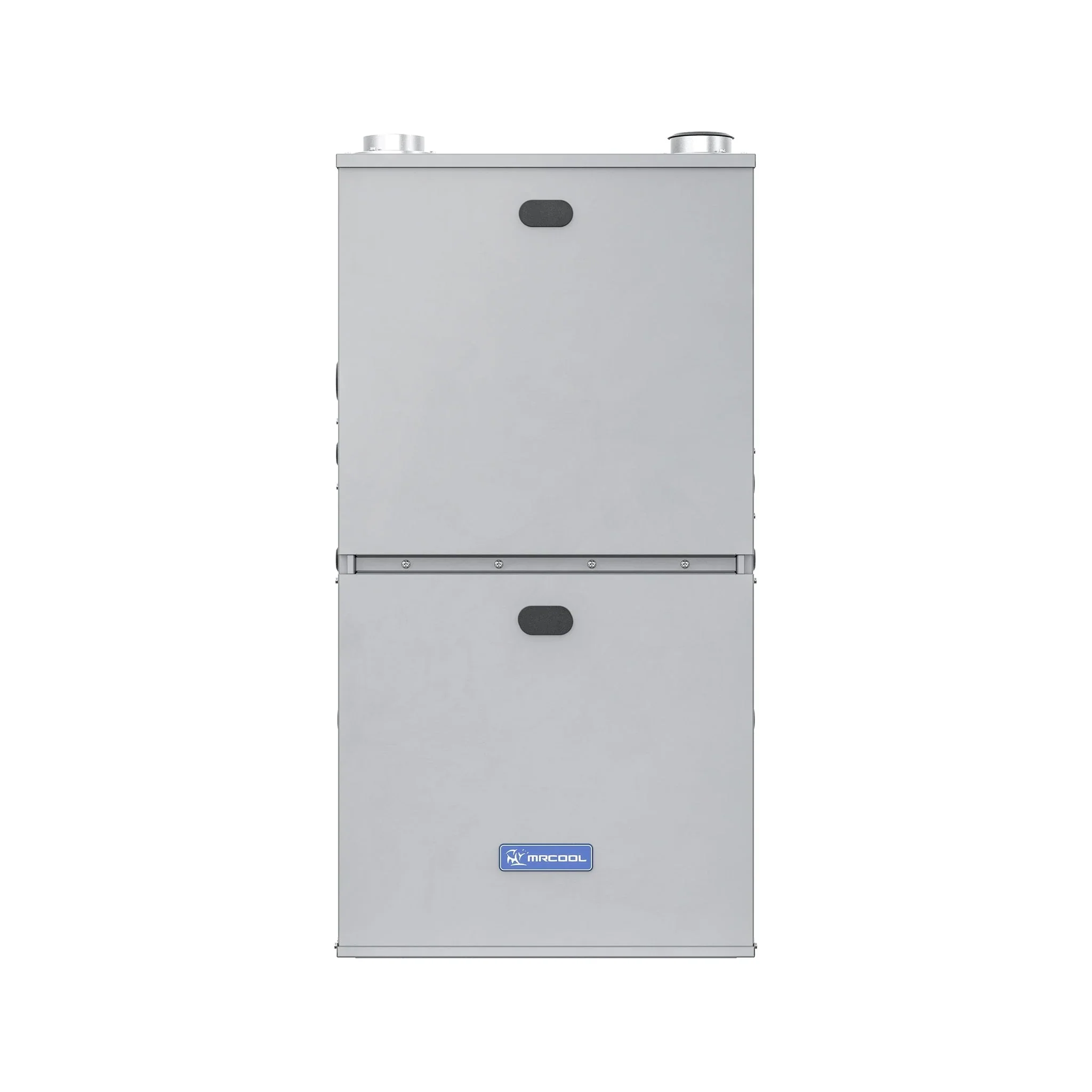

VersaPro 96% Gas Furnace

BRAND NAME

MRCOOL

SERIES

VersaPro 96% Gas Furnace

MODEL

MGM96EE080B3NB

GTIN

00840255582643

UPC

840255582643

UNIT TYPE

Gas Furnace

CONFIGURATION

Multi-Position

SHORT DESCRIPTION

MRCOOL® VersaPro® 80k BTU 96% AFUE Gas Furnace

LONG DESCRIPTION

Even the harshest winters stand no chance against the efficient and quiet-running MRCOOL® VersaPro® 80k BTU 96% AFUE Gas Furnace. Thanks to its two-stage, consistent torque DC motor and 96% AFUE rating, you can relax knowing it's cutting down on your utility bills. Built with an aluminized steel tubular heat exchanger and stainless steel secondary heat exchanger, this furnace ensures both durability and reliability. Its compact design allows for easy installation, even in tight spaces. The furnace is designed for multi-position installation in upflow or horizontal configurations, with convenient left or right connections for gas or electric service. It also features a removable bottom panel for side or bottom return applications, simplifying both maintenance and installation processes. Additionally, it can be easily converted to propane with an optional LP kit. Being AHRI certified and ETL listed ensures the furnace meets rigorous quality and performance standards. Registering the furnace within 90 days activates a 10-year parts warranty and a lifetime warranty on the heat exchanger, providing added peace of mind. Even without registration, you're covered by a 5-year parts warranty and a 20-year heat exchanger warranty, ensuring long-term reliability and comfort.

FEATURE LIST



  • Intertek Cert: 3124627
  • Filter Size:
    Side Return: 16x25x1
    Bottom Return: varies on furnace casing width 14x25 16x25 20x25 24x25
  • Quiet Operation
  • Superior Performance
  • Durable Build & Finish
  • Optional LP Kit
  • Multi-Position Application
  • 96% AFUE
  • Two Stage
  • Energy Efficient
  • Compact Design



AFUE

96

FUEL TYPE

Natural/Propane Gas

BTU INPUT

80000

BTU OUTPUT

76000

VOLTAGE (V)

115

PHASE

1

CYCLE

60

STAGE

Two

MAX FUSE BREAKER (A)

15

MIN CIRCUIT AMPACITY (A)

8

COLOR

Gray

FULL LOAD

8

BLOWER MOTOR TYPE

ECM

BLOWER MOTOR HP

3/4

BLOWER MOTOR RPM

1050

FILTER TYPE

replaceable

ETL LISTED

yes

AHRI CERTIFIED

yes

REGISTERED PARTS WARRANTY

10 Years

BASE PARTS WARRANTY

5 Years

REGISTERED HEAT EXCHANGER WARRANTY

Lifetime

BASE HEAT EXCHANGER WARRANTY

20 Years

CONTAINS ELECTRONICS

Yes

PROPOSITION 65 WARNING

Yes

NET DEPTH (IN)

28.74

NET HEIGHT (IN)

33.74

NET WIDTH (IN)

17.52

NET WEIGHT (LBS)

139

GROSS DEPTH (IN)

31.02

GROSS HEIGHT (IN)

40.35

GROSS WIDTH (IN)

20.00

GROSS WEIGHT (LBS)

168



MRCOOL Coil

BRAND NAME

MRCOOL

SERIES

MRCOOL Coils

MODEL

MCMP1824BOTB

GTIN

00840255582797

UPC

840255582797

UNIT TYPE

Split System Coil

CASED

Yes

CONFIGURATION

Multi-Position

SHORT DESCRIPTION

1.5-2 Ton MultiPositional 17.5" Cased Coil - Pre-Charged R454B

LONG DESCRIPTION

The MRCOOL® 1.5-2 Ton Pre-Charged A-Coil is a versatile and energy-efficient solution designed for seamless compatibility with most R-454B systems that have No-Vac® Quick Connect® line set or a flare to sweat connections. Whether you're replacing a coil in an existing setup or planning a new installation, this pre-charged evaporator coil offers quick, hassle-free installation and improved energy performance. Pre-filled with R-454B refrigerant, the A-Coil helps meet modern environmental regulations with a significantly reduced Global Warming Potential compared to older refrigerants. The pre-charged coil eliminates the need for on-site charging, simplifying the installation process and saving time and labor—an ideal option for both professionals and homeowners looking to streamline setup and reduce costs. Designed for maximum adaptability, this coil supports upflow, downflow, and horizontal configurations to accommodate a wide range of installations, even in tight or challenging spaces. It includes practical features such as dual front drain connections for simple utility hookups, a built-in side drain pan for horizontal applications, and an A2L leak detection sensor for added peace of mind. These features combined ensure flexible and efficient performance. The unit is built to last, outfitted with CoolGuard® corrosion-resistant aluminum coil technology, which offers superior durability and long-term protection against harsh operating environments. Protected by a 10-year limited parts warranty, the MRCOOL® 1824-B Pre-Charged A-Coil delivers reliable comfort and high efficiency year-round—making it a smart investment for homeowners and HVAC professionals alike.

WORKS WITH

Hyper Heat Condensers, Universal Split Condensers, and the VersaPro 2nd Generation Furnaces

TONNAGE

1.5-2 Ton

COLOR

Grey

REFRIGERANT TYPE

R-454B

LIQUID LINE SIZE

3/8

SUCTION LINE SIZE

3/4

METERING DEVICE

TXV

BASE WARRANTY

10 Year Part Warranty

BASE PARTS WARRANTY

10 Year

CONTAINS ELECTRONICS

Yes

CONTAINS CHEMICALS

Yes

CONTAINS COMPRESSED GAS

Yes

NET DEPTH (IN)

21

NET HEIGHT (IN)

18

NET WIDTH (IN)

17.5

NET WEIGHT (LBS)

42

GROSS WEIGHT (LBS)

50

Universal Series Heat Pump

BRAND NAME

MRCOOL

SERIES

Universal R-454B

MODEL

UHP18024-O

GTIN

00840255587877

UPC

840255587877

UNIT TYPE

Universal Series Heat Pump

SHORT DESCRIPTION

Universal Series Heat Pump Inverter Condenser

LONG DESCRIPTION

The MRCOOL® Universal® Series 24K DC Inverter Heat Pump Condenser is built to deliver dependable, high-efficiency heating and cooling—even in extreme outdoor conditions. Whether you're facing frigid winters or sweltering summer heat, this powerful unit ensures consistent indoor comfort without compromise. With an impressive 18.6 SEER2 rating, it offers energy-saving performance that helps reduce utility costs while keeping your home comfortable year-round. This condenser is an ideal solution for homeowners who need reliable performance in smaller or space-restricted areas. Its sleek, compact design makes it easy to install in smaller spaces—without sacrificing power or performance. At the heart of the system is advanced DC inverter technology, which allows the unit to operate at variable speeds, maintaining a steady indoor temperature with minimal energy use. Unlike traditional systems that frequently cycle on and off, this technology improves efficiency, reduces wear on components, and delivers quieter, smoother operation. Installation is made even easier with compatibility for the MRCOOL® NO-VAC® Quick Connect® line set (sold separately). This pre-charged, sealed line set eliminates the need for vacuuming or flaring, significantly reducing installation time, complexity, and cost. It’s the perfect solution for homeowners and contractors looking for a faster, more reliable setup. For added peace of mind, MRCOOL® backs the Universal® Series 24K DC Inverter Heat Pump Condenser with a 10-year parts warranty and a 2-year limited labor warranty, ensuring your investment is protected well into the future.

SEER2

Up to 18.6

EER2

Up to 12

HSPF2-4

10

HSPF2-5

8.1

TONNAGE

2

COOLING CAPACITY (BTU)

24000

HEATING CAPACITY (BTU)

24000

VOLTAGE (V)

208/230

PHASE

1

CYCLE

60

MAX FUSE BREAKER (A)

20

MIN CIRCUIT AMPACITY (A)

19

COLOR

Dark Grey

REFRIGERANT TYPE

R-454B

REFRIGERANT VOLUME (OZ)

74.08

DECIBEL RATING (DBA)

59

INVERTER

DC

MAX LINESET LENGTH (FT)

164

LIQUID LINE SIZE

3/8

SUCTION LINE SIZE

3/4

COMPRESSOR MOTOR TYPE

Rotary

CONDENSER FAN MOTOR RPM

810/700/450

METERING DEVICE

EXV

UL LISTED

Yes

CSA LISTED

Yes

ETL LISTED

Yes

BASE WARRANTY

10 Year Parts

BASE PARTS WARRANTY

10 Years

BASE LABOR WARRANTY

2 Year

CONTAINS ELECTRONICS

Yes

CONTAINS CHEMICALS

Yes

CONTAINS COMPRESSED GAS

Yes

PROPOSITION 65 WARNING

Yes

NET DEPTH (IN)

13.46

NET HEIGHT (IN)

26.5

NET WIDTH (IN)

35.04

NET WEIGHT (LBS)

102.29

GROSS DEPTH (IN)

15.67

GROSS HEIGHT (IN)

29.13

GROSS WIDTH (IN)

39.17

GROSS WEIGHT (LBS)

109.13

MRCOOL Dual Fuel System

Questions & Answers

What is a MRCOOL Dual Fuel System?

The MRCOOL Dual Fuel System combines a high-efficiency heat pump with a gas furnace to give you the best of both worlds — electric heating and cooling when conditions are mild, and gas heat when it’s more efficient. It’s a smart, energy-saving setup that automatically switches between electric and gas heat to keep your home comfortable and your energy bills low.

What makes the MRCOOL Dual Fuel System different from other systems?

The MRCOOL Dual Fuel System features a factory pre-charged “A” coil that comes ready to install with no refrigerant handling required. This means you can connect it using our DIY pre-charged line sets for a completely DIY refrigerant installation—no vacuum pump, gauges, or professional charging required. That alone can save you thousands of dollars in installation costs.



What outdoor units can I pair with the MRCOOL pre-charged “A” coil?

The pre-charged “A” coil is compatible with:

  • MRCOOL VersaPro (standard heat pump with heating and cooling)
  • MRCOOL Hyper Heat Series (heats without a heat strip, even in temperatures as low as -22°F)
  • MRCOOL Universal Series (high-performance, flexible installation options)

All of these can be matched with a gas furnace to create a full dual-fuel system

What does “pre-charged” mean?

Pre-charged” means the coil and optional line sets come filled with the correct amount of R-454B refrigerant from the factory.

The refrigerant is sealed inside quick-connect fittings, so when you attach the pre-charged line sets, the system automatically opens and seals without any risk of leaks or contamination. No HVAC license or tools required!

Can I install the system myself?

If you’re using DIY pre-charged line sets, the refrigerant portion is completely DIY. However, if you’re integrating the system with an existing gas furnace, you may want a professional to confirm proper electrical and gas connections for safety and code compliance. Many homeowners complete the bulk of the install themselves and bring in a pro only for final checks.

Can I use copper line sets instead of pre-charged line sets?

Absolutely. The pre-charged “A” coil is versatile — it can be installed with traditional copper line sets(by a professional) or with MRCOOL’s DIY pre-charged line sets for a no-hassle setup.
