MRCOOL® 36K 5th Gen DIY® 5- Zone Mini Split Bundle with (18K + 18k) Air handler with (16ft + 16ft) Pre-Charged R-454B Line Sets- (230V), DIYM236HPW07D00
Product Description
Model: DIYM236HPW07D00
The Ultimate Large-Room Dual-Zone DIY Solution
The MRCOOL DIYM236HPW07D00 bundle delivers serious heating and cooling power where homeowners need it most — two large zones, each covered by a powerful 18,000 BTU wall-mounted air handler. Paired with MRCOOL’s flagship 36K 5th Generation multi-zone condenser, this system offers unmatched DIY simplicity, premium efficiency, and year-round performance.
This bundle is perfect for:
✔ Great rooms & open living/dining spaces
✔ Master bedrooms + bonus rooms
✔ Workshops, garages, offices
✔ Basement + upstairs combinations
✔ Large apartments, studios, or rental units
Why Homeowners Choose This Bundle Over Any Other Dual-Zone Setup
✔ Two Heavy-Duty 18K Indoor Units
Each 18K handler delivers powerful cooling/heating for spaces up to 800 sq ft, perfect for oversized areas where 9K or 12K units struggle.
✔ Includes Dual 16 ft Pre-Charged Line Sets (DIY16-1412-O)
Perfect for indoor units located near the condenser.
• No vacuum pump
• No refrigerant handling
• Just tighten the Quick-Connect fittings and you’re done
✔ Most Advanced 5th Generation MRCOOL DIY Condenser
The DIY-MULTI5-36HP230D-O supports up to 5 zones and provides efficient, quiet, and balanced output for all attached air handlers.
✔ 100% True DIY Install
Everything arrives factory-charged with R-454B, the new low-GWP refrigerant replacing R-410A. No EPA license needed.
✔ SmartHVAC WiFi Built In
Control both zones from anywhere using:
• MRCOOL App
• Alexa
• Google Assistant
• Schedules & energy monitoring
Component Breakdown
36K Multi-Zone Condenser – DIY-MULTI5-36HP230D-O
- 34,000 BTU cooling
- 36,000 BTU heating
- MAX FUSE BREAKER (A) 35
- MIN CIRCUIT AMPACITY (A) 30.5
- 23 SEER2
- Up to 5 zones supported
- R-454B refrigerant
- Ultra-quiet inverter
- 5-year parts / 7-year compressor
- Eligible for the MRCOOL® Care Program (see MRCOOL terms).
18K Wall Mount Air Handler – DIY-18-HP-WMAH-230D25-O
(×2)
Each unit includes:
- Up to 800 sq ft coverage
- Alexa/Google smart control
- Whisper-quiet operation
- Gold Fin® anti-corrosion
- Dry Mode for humidity reduction
- Follow Me® temperature tracking
16 ft R-454B Quick-Connect Line Set – DIY16-1412-O
(×2)
- 1/4 × 1/2 size
- Pre-charged with R-454B
- Quick-Connect fittings — no vacuuming
- Perfect length for close-range installs

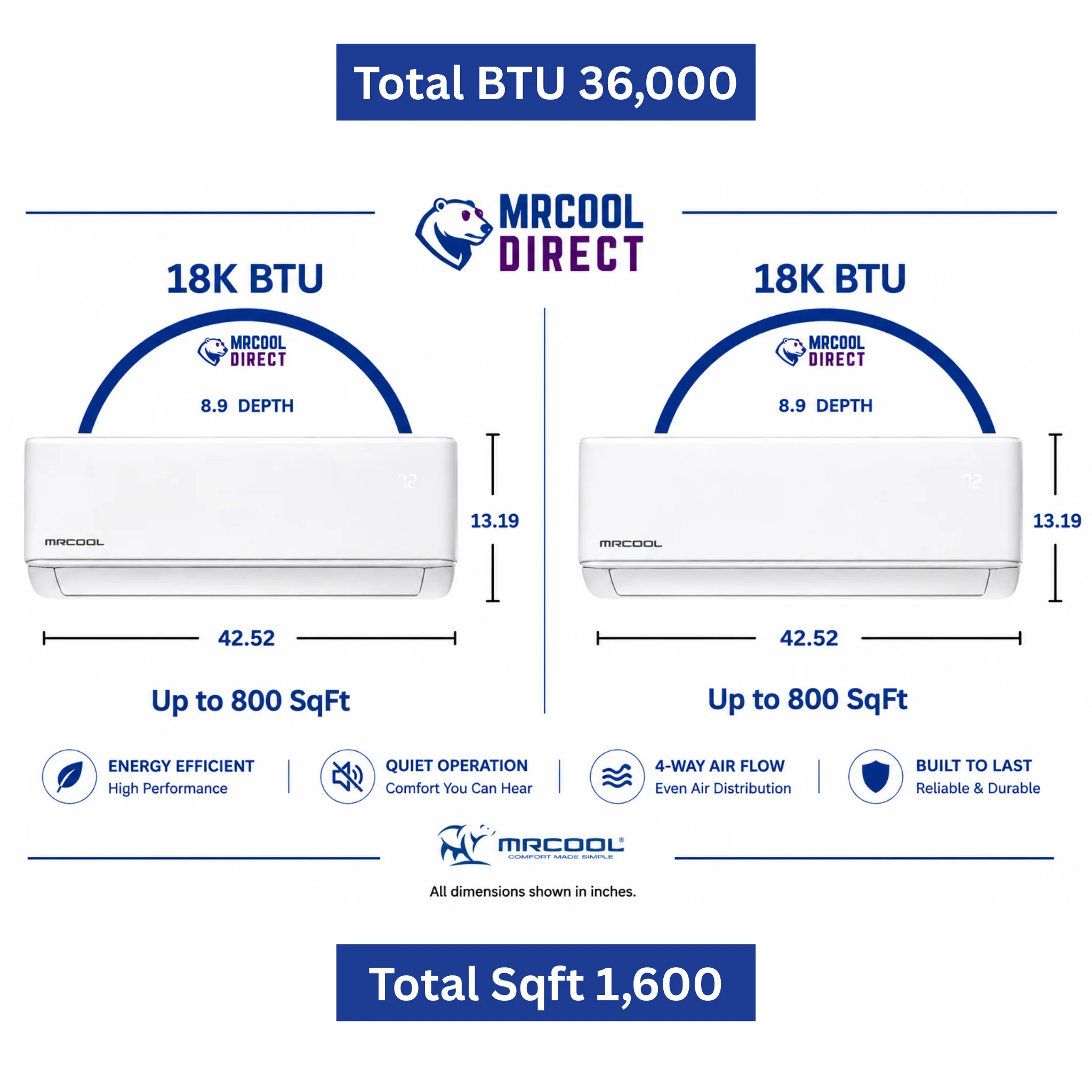

System Sizing: Perfect for Two Large Zones
Each 18K handler = ~800 sq ft
Total coverage: ~1,600 sq ft across two zones
Great for multi-room conditioning or oversized open spaces.
Feature Highlights
- Energy Star Certified
- SmartHVAC WiFi
- Quiet DC inverter
- Auto, Dry, Cool & Heat modes
- Works in hot and cold climates
- Fully DIY rated
- Includes remote controls
- Future expansion available (up to 3 more zones)

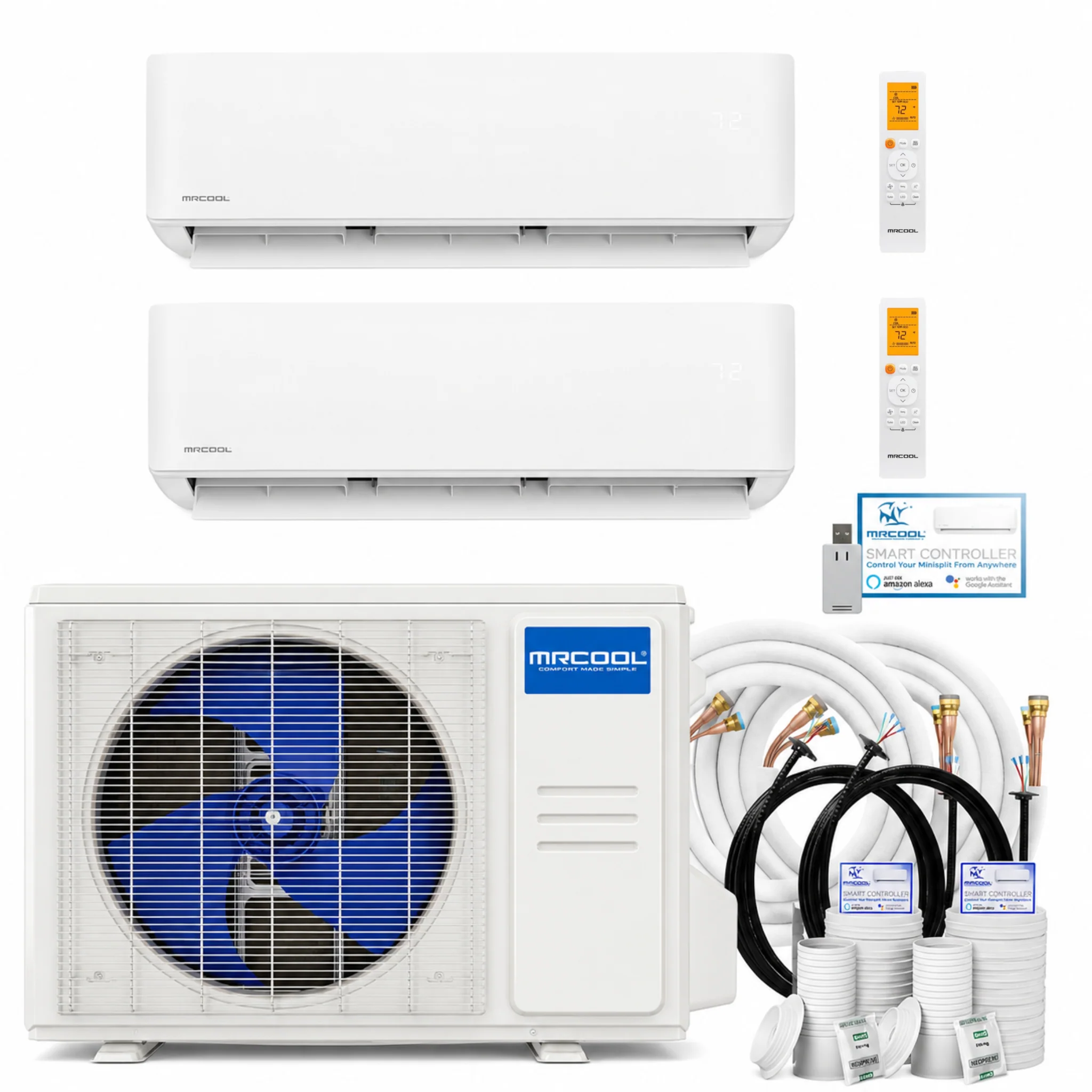

What’s Included
- (1) 36K 5-Zone Condenser
- (2) 18K Wall Mount Air Handlers
- (2) 16 ft R-454B Line Sets
- (2) Remotes
- (2) DIYPro® cables
- Install mounting plates
- Manuals & hardware
Frequently Asked Questions
Do I need a professional installer?
No — this is a true DIY mini split with pre-charged line sets.
Can I add more zones later?
Yes — up to 3 additional indoor units.
Does it work in cold climates?
Yes — the inverter system provides strong, reliable heat even in low temperatures.
Does each room have separate controls?
Yes — each 18K zone has its own remote + smartphone control.
Why Buy From MRCOOL DIRECT?
When you order from MRCOOL Direct, you get:
- ✅ Authorized MRCOOL dealer – Your warranty is protected
- ✅ Factory-fresh units – No refurbished or mystery sources
- ✅ Fast U.S. shipping – Most in-stock items ship in 1–3 business days
- ✅ Financing options – Make high-efficiency comfort more affordable
- ✅ Real product support – Help with sizing, line set selection, and DIY questions
- ✅ No third-party marketplace middlemen – Just genuine MRCOOL systems from a trusted dealer
BUY DIRECT!
Feel Free to call us anytime. Family Friendly help just a dial away. We love talking HVAC
615-553-8118
Family owned & USAs #1 MRCOOL Authentication Dealer.
