MRCOOL® 48K 5th Gen DIY® 6-Zone DIY® Mini Split With (24K + 24K) Air Handlers + (25ft + 25ft) Pre-Charged R-454B Line Sets, (230V)- DIYM248HPW07D00
Product Description
Model: DIYM248HPW07D00
The MRCOOL DIYM248HPW07D00 is engineered for homeowners who need serious heating and cooling capacity in two large zones without hiring an HVAC contractor. Using the top-tier 48K 6-zone MRCOOL DIY condenser, this configuration delivers high-output performance, whisper-quiet operation, and the freedom to expand up to four additional zones later.
This system is perfect for homes with:
- Large open living rooms
- Great rooms
- Oversized master suites
- Finished basements
- Workshops, gyms, lofts
- Large studios or bonus rooms
If you need big-room comfort that installs like LEGO, this is it.
48K Double-Stack DIY Condenser — MRCOOL’s Most Powerful DIY Platform
The DIY-MULTI6-48HP230D-O condenser is the flagship of the DIY family, offering:
High Efficiency
- 21.8 SEER2
- 10.0 HSPF2-4
Big Heating Power
Delivers strong heating even in cold weather thanks to inverter technology.
Supports Up to 6 Zones
Your bundle uses 2× 24K wall units — meaning four ports remain open if you decide to add future rooms.
True No-Vacuum DIY Technology
Quick-Connect® precharged ports mean:
- No gauges
- No refrigerant handling
- No HVAC tech required
Smart Controls
Control your system from:
- SmartHVAC™ App
- Amazon Alexa
- Google Assistant
Warranty Protection
- 5-year parts
- 7-year compressor
This is the top-rated DIY condenser in the USA for flexibility, power, and ease of installation.

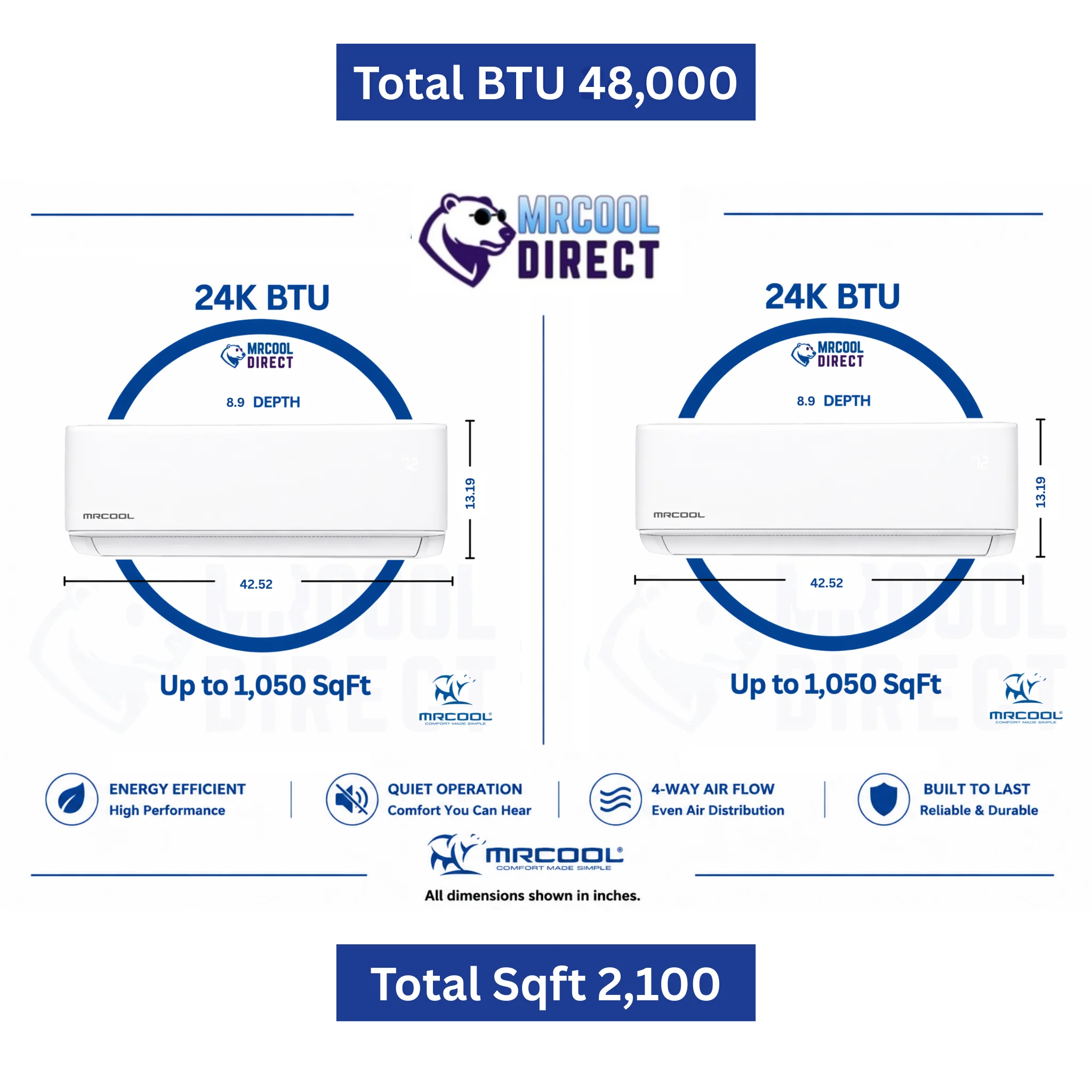

Dual 24K Wall-Mounted Air Handlers — Large Room Heating & Cooling, Up to 1,050 sq ft Each
Your bundle includes:
2 × 24,000 BTU Air Handlers
Both units are sized to cover 1,000–1,050 sq ft each, making this system ideal for two huge rooms.
Each air handler includes:
- Follow Me® remote temperature sensing
- Dry Mode for humidity management
- Whisper-quiet variable inverter fan
- Auto restart & auto mode
- WiFi + app controls
- Multi-speed airflow
- Proprietary MRCOOL DIYPro® cable
These are contractor-grade indoor units designed for homeowners to install themselves.
Dual 25ft Pre-Charged Quick-Connect Line Sets
This bundle includes:
2 × DIY16-3858-O
(25 ft, 3/8 × 5/8 — for 24K & 36K indoor units)
Features include:
- Full R-454B factory charge
- Leak-proof proprietary fittings
- Heavy insulation
- Pre-installed communication wire
- Bendable, flexible routing
- No vacuum pump required
Perfect length for most installs — long enough for attic/basement routing without excess slack.
Electrical Requirements
DIY-MULTI6-48HP230D-O Condenser:
- Max Breaker: 45A
- Minimum Circuit Ampacity: 40A
Always use a licensed electrician for line-voltage connections.

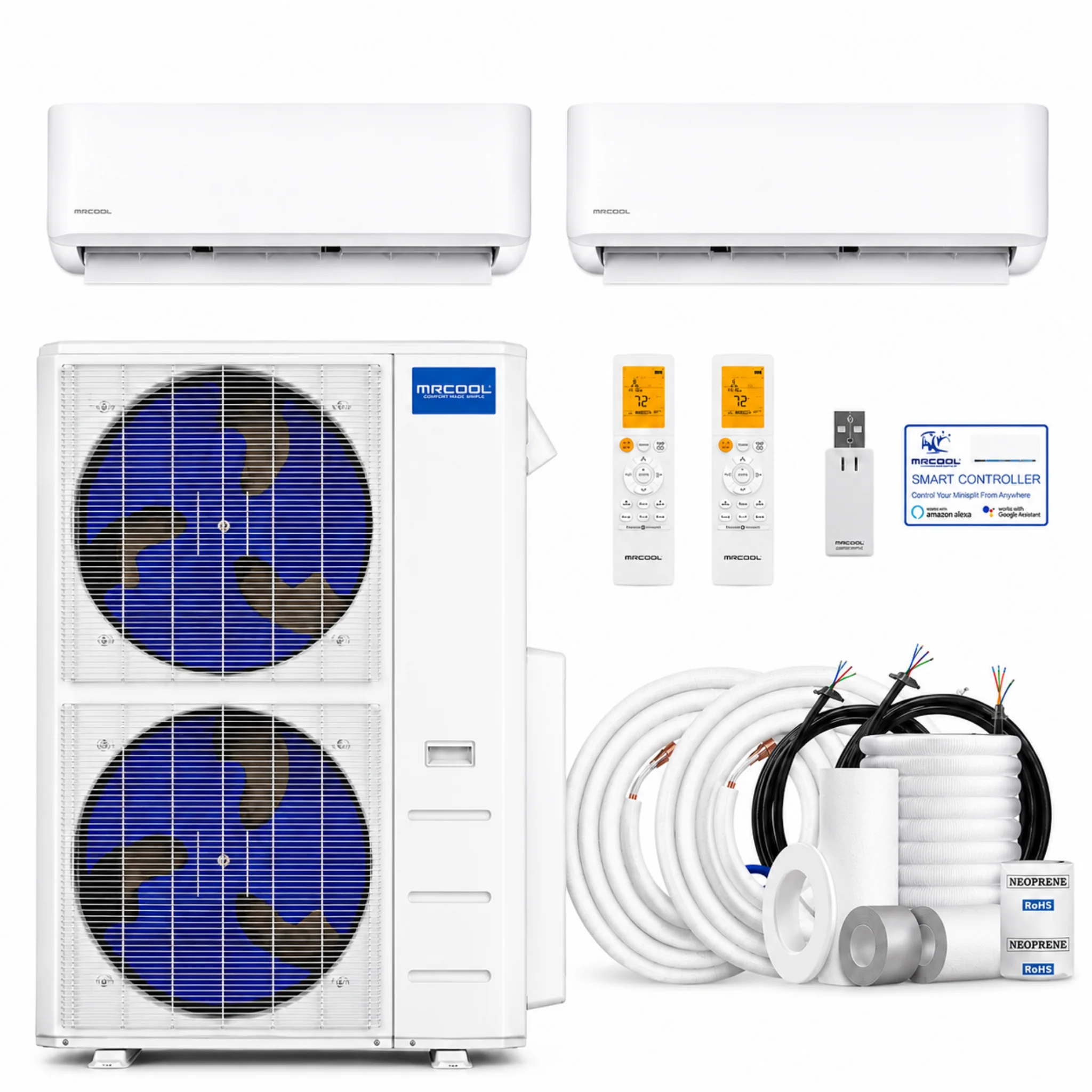

WHAT’S INCLUDED — DIYM248HPW07D00
Outdoor Unit
- (1) DIY-MULTI6-48HP230D-O 48K 6-Zone Condenser
Indoor Units
- (2) DIY-24-HP-WMAH-230D25-O (24K Wall Air Handlers)
Line Sets
- (2) DIY16-3858-O (25 ft, pre-charged)
Accessories
- Remotes
- Wall mounting hardware
- SmartHVAC module
- DIYPro® communication cables
- Manuals & installation supports
FAQ- Frequently Asked Questions
Is this system fully DIY?
Yes — MRCOOL’s Quick-Connect system eliminates the need for professional refrigerant work.
How large of a space can this setup handle?
Two 24K units can cover 2,000–2,100 sq ft combined.
Can I expand this system?
Yes — up to six indoor units total.
Do the line sets include refrigerant?
Yes — they’re fully charged with R-454B and sealed at the factory.
Are both air handlers identical?
Yes — two 24K units to support evenly distributed large-zone coverage.
Why Buy From MRCOOL DIRECT?
When you order from MRCOOL Direct, you get:
- Authorized MRCOOL dealer – Your warranty is protected
- Factory-fresh units – No refurbished or mystery sources
- Fast U.S. shipping – Most in-stock items ship in 1–3 business days
- Financing options – Make high-efficiency comfort more affordable
- Real product support – Help with sizing, line set selection, and DIY questions
- No third-party marketplace middlemen – Just genuine MRCOOL systems from a trusted dealer
BUY DIRECT!
Feel Free to call us anytime. Family Friendly help just a dial away. We love talking HVAC
615-553-8118
Family owned & USAs #1 MRCOOL Authentication Dealer.
