MRCOOL® Olympus 24,000 BTU 2 Ton Ducted Mini Split Air Handler 230V/60Hz, DUCT-24HP-230B-O
Description
(NON-DIY)

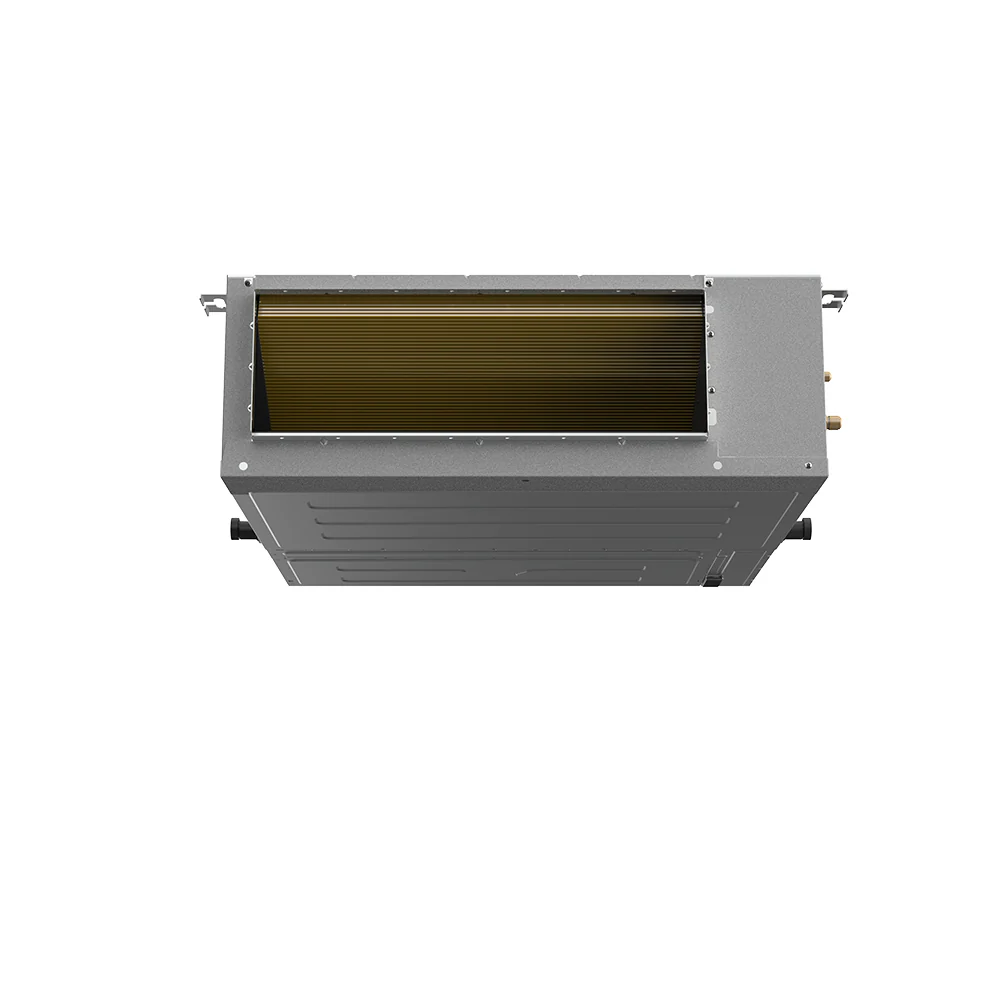

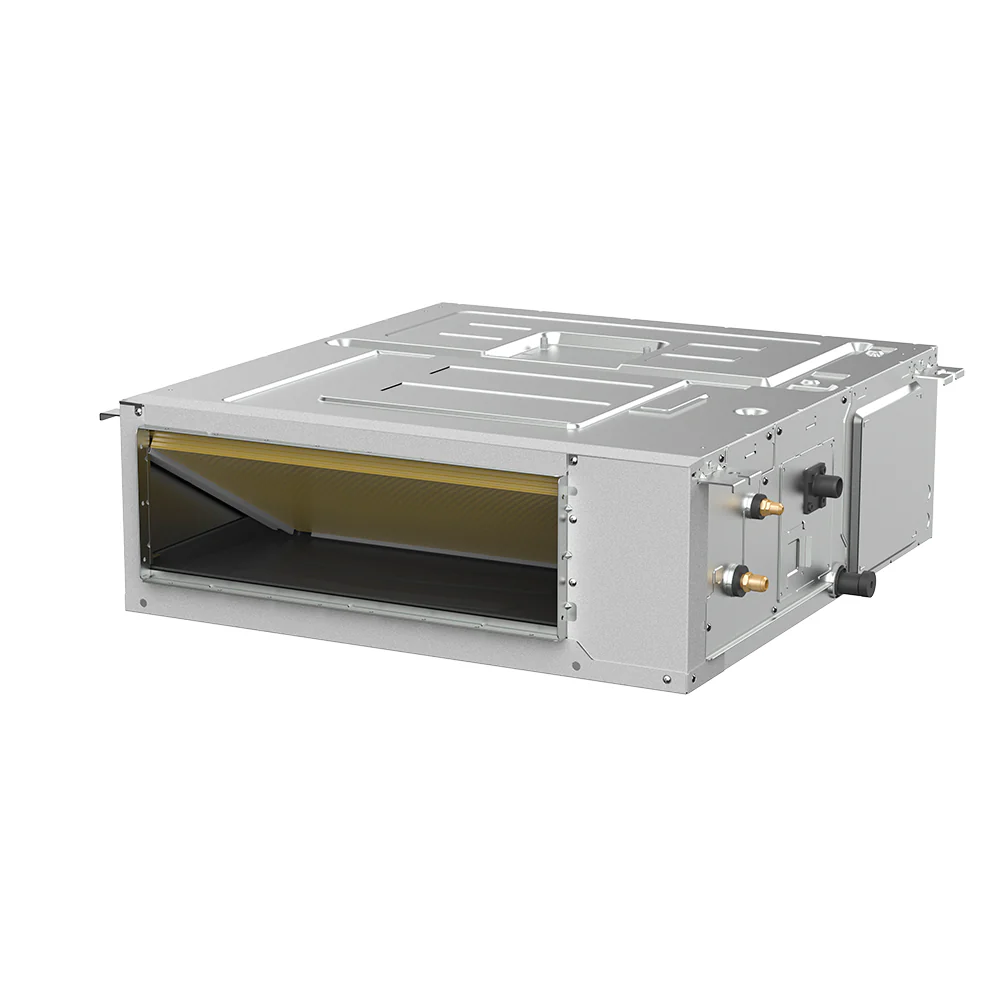

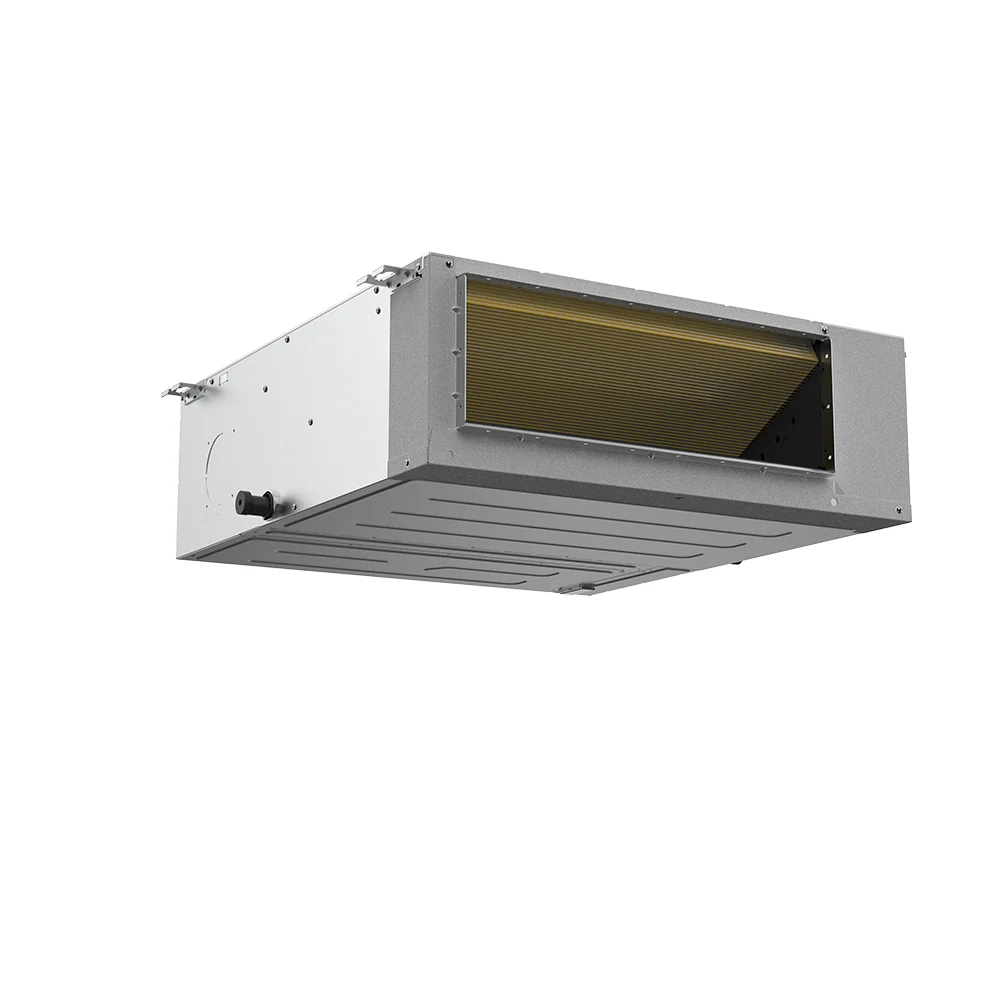

The MRCOOL® OLYMPUS 24K DUCT Air Handler is a compact and efficient heating and cooling solution designed for spaces up to 1,000 square feet. Its ceiling-integrated design ensures a seamless, modern look that fits effortlessly into both residential and light commercial spaces. With easy-to-use controls, eco-friendly refrigerant, and dependable performance, this unit offers a perfect balance of comfort, style, and sustainability.
- Discreet Design: Ceiling-integrated setup allows for a flush, modern installation that complements any interior space.
- Ideal Coverage: Designed to efficiently heat and cool rooms up to 1,000 sq. ft., making it perfect for bedrooms, offices, or small living areas.
- Convenient Controls: Includes both a wired wall-mounted controller and a handheld remote for flexible, easy operation.
- Eco-Friendly Refrigerant: Utilizes R-454B refrigerant with low global warming potential, combining environmental responsibility with strong performance.
- Quiet Operation: Engineered for minimal noise, maintaining a peaceful atmosphere while delivering consistent comfort.
- Reliable Warranty: Protected by a 5-year parts warranty for long-term peace of mind.
Professional Installation Required
As part of the Olympus professional series, this air handler must be installed by a licensed HVAC technician. Pre-charging, evacuation and pressure testing ensures the system’s refrigerant integrity, energy efficiency and warranty eligibility.
SPECIFICATIONS & DIMENSIONS
| DIMENSIONS | |
|---|---|
| Dimensions | 39.37" W x 29.53" D x 9.65" H |
| Mount Type | Ducted |
| Weight | 80.47 lbs |
| CAPACITY & PERFORMANCE | |
| Tonnage | 2 Ton |
| Capacity | 24,000 BTU |
| Coverage Area | 751 to 1,000 sq ft. |
| ELECTRICAL REQUIREMENTS | |
| Voltage | 208-230V |
| Phase | 1 |
| Cycle | 60 Hz |
| Max Fuse Breaker | 15A |
| Min Circuit Ampacity | 3A |
| REFRIGERANT & PIPING | |
| Refrigerant Type | R-454B |
| Liquid Line Size | 3/8" |
| Suction Line Size | 5/8" |
| FEATURES | |
| Fan Only Option | Yes |
| Quiet Mode | Yes |
| Auto Cool | Yes |
| Wifi Compatibility | No |
| App Compatibility | No |
| Works with IOS | No |
| Works with Android | No |
| Remote Control Included | Yes |
| CERTIFICATION & WARRANTY | |
| Certifications | UL Listed, ETL Listed, CSA Listed |
| Warranty | 5 Year Parts |
Why Choose the Olympus Series
When compared to the “Good, Better, Best” range of MRCOOL® systems, the Olympus Series is the Best—offering traditional professional installation, robust components, and long-term performance that meets demanding comfort needs. It’s the ultimate choice for homeowners and contractors seeking high-end, ducted climate control backed by trusted MRCOOL® reliability.
