Product Description

Model: DIYM236HPW06D00



MRCOOL DIYM236HPW06D00 – 36k 5th Gen DIY Two-Zone Bundle (12K + 24K, 16ft Line Sets)

The MRCOOL DIYM236HPW06D00 bundle is a premium 36,000 BTU 5th Generation DIY multi-zone system designed for homes needing two zones with short, 16-foot line runs. This configuration includes a 12K head for mid-sized rooms, a 24K head for larger spaces, and both paired with 16 ft pre-charged R-454B Quick-Connect line sets for compact installations.



This is the perfect bundle when:

• Your indoor air handlers are very close to the condenser
• You want minimal line exposure
• You want the lowest line set resistance for maximum performance

You get SmartHVAC app control, R-454B refrigerant, true DIY installation, and MRCOOL’s patented Quick-Connect system that eliminates the need for vacuum pumps.

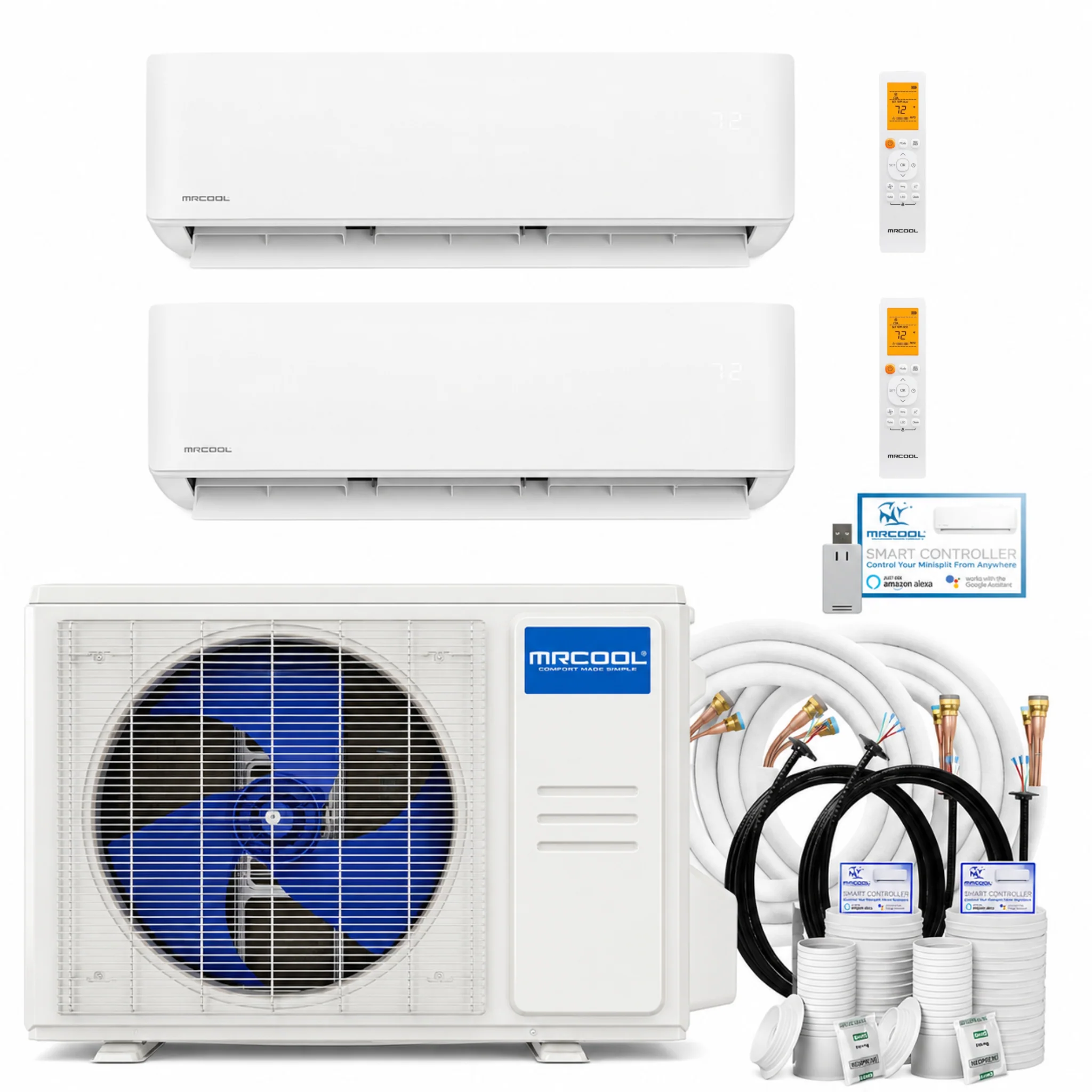

What’s Included in the DIYM236HPW06D00 Bundle

✔ 36,000 BTU 5th Gen Multi-Zone Condenser — DIY-MULTI5-36HP230D-O

• 36,000 BTU cooling / 36,000 BTU heating
• Supports up to 5 zones
• 23 SEER2, 12 EER2, 9.9 HSPF2-4
• Pre-charged R-454B Quick-Connect ports
• SmartHVAC app + Alexa + Google Assistant
• Gold Fin® corrosion-resistant outdoor coil
• Quiet, efficient DC inverter performance
• Up to 221 ft total line set length capability



Electrical:

• MCA: 30.5A
• Max Fuse/Breaker: 35A
• Voltage: 208/230V



12,000 BTU 5th Gen DIY Wall Mount — DIY-12-HP-WMAH-230D25-O

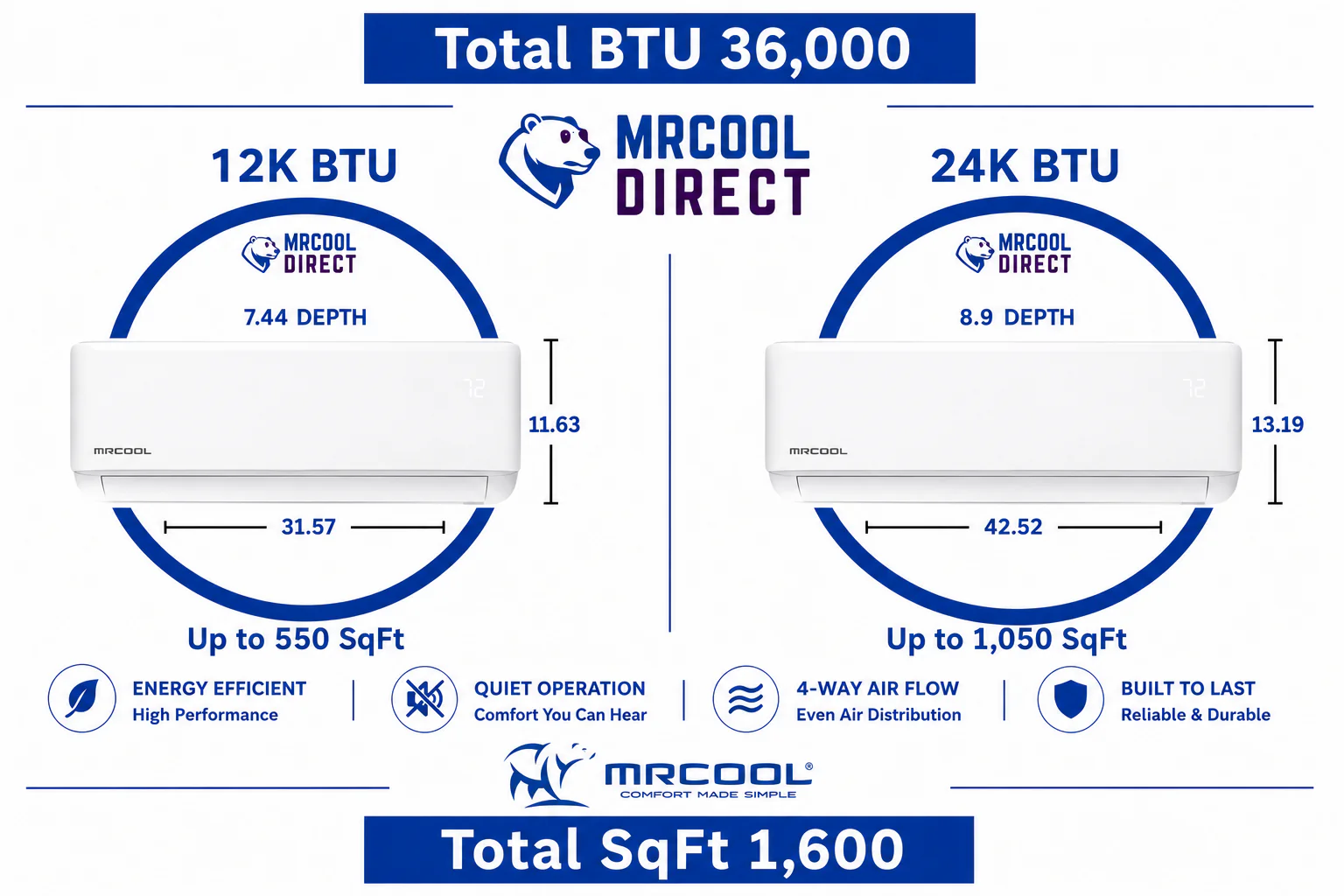

• Ideal for up to 550 sq ft
• Perfect for bedrooms, offices, or mid-sized rooms
• Includes SmartHVAC app + remote + Follow Me®
• Ultra-quiet operation
• Works flawlessly with the DIY16-1438-O 16 ft line se



24,000 BTU 5th Gen DIY Wall Mount — DIY-24-HP-WMAH-230D25-O

• Comfort for up to 1,050 sq ft
• Strong airflow for open living spaces
• SmartHVAC app, Alexa, Google control
• Gold Fin® anti-corrosion
• Quiet mode, dry mode, multi-speed fan

Pairs with DIY16-3858-O (16 ft 3/8 × 5/8 line set).

16 ft 1/4 × 3/8 Pre-Charged Line Set — DIY16-1438-O

• Length: 16 ft
• Liquid: 1/4”
• Suction: 3/8”
• Pre-charged with R-454B
• Quick-Connect fittings
• Ideal for 12K indoor units near the condenser



16 ft 3/8 × 5/8 Pre-Charged Line Set — DIY16-3858-O

• Length: 16 ft
• Liquid: 3/8”
• Suction: 5/8”
• Pre-charged with R-454B
• Perfect for 24K indoor units positioned close to the condenser



FAQ – MRCOOL DIYM236HPW06D00 Two-Zone 36k 5th Gen DIY System

1. What rooms is this bundle best for?

A 12K zone (~550 sq ft) + 24K zone (~1,050 sq ft) is ideal for a bedroom + large living area, office + bonus room, or two-story split coverage.



2. Is this a true DIY system?

Yes — MRCOOL’s Quick-Connect line sets are factory pre-charged with R-454B, so you don’t need gauges or vacuum pumps when installed according to MRCOOL’s instructions.





3. What breaker size is required?

For the condenser:

• Max Fuse/Breaker: 35A
• Minimum Circuit Ampacity: 30.5A



4. Are the 16 ft line sets long enough?

Yes, when the air handlers are mounted close to the outdoor unit, typically:

• Same wall
• Adjacent room
• Short back-to-back install



5. Can I add more zones later?

Yes — the 36k unit supports up to 5 zones total, following MRCOOL’s BTU and connection limits.



6. Does each indoor unit have its own temperature control?

Yes — both the 12K and 24K have independent thermostats, remotes, WiFi control, and settings.





7. Is the system compatible with Alexa or Google?

Yes — full Alexa + Google Assistant voice support.



8. Does this handle humidity?

Yes — both indoor units feature DRY MODE for dehumidification.





Why Buy From MRCOOL DIRECT?

When you order from MRCOOL Direct, you get:

• ✅ Authorized MRCOOL dealer – Your warranty is protected
• ✅ Factory-fresh units – No refurbished or mystery sources
• ✅ Fast U.S. shipping – Most in-stock items ship in 1–3 business days
• ✅ Financing options – Make high-efficiency comfort more affordable
• ✅ Real product support – Help with sizing, line set selection, and DIY questions
• ✅ No third-party marketplace middlemen – Just genuine MRCOOL systems from a trusted dealer

BUY DIRECT!
