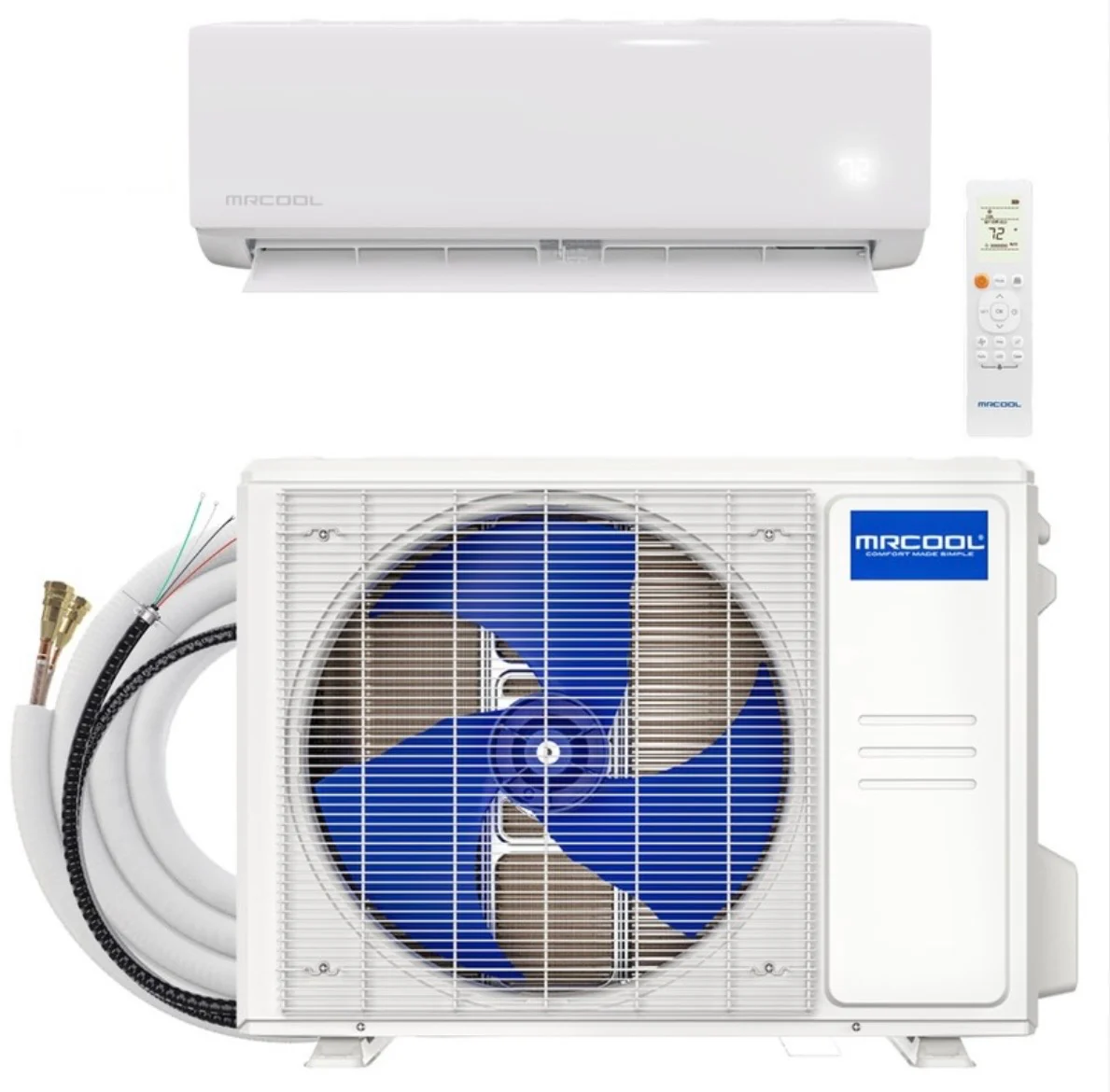

The MRCOOL Easy Pro 24K BTU mini split system delivers powerful heating and cooling for spaces up to 1,050 sq ft. With an 11.5 ft pre-charged line set, this DIY system installs fast with no HVAC tools required.



Product Description



Maximum Power Meets Easy DIY Installation

The MRCOOL Easy Pro® 24K BTU Mini Split System is built for larger homes and open spaces that demand powerful performance — without complicated installation.

With the included 11.5 ft pre-charged Quick Connect® line set, this system eliminates the most difficult parts of installing HVAC.

👉 No vacuum pumps
👉 No refrigerant handling
👉 No HVAC experience needed



Designed for Large Spaces Up to 1,050 Sq Ft

Perfect for:

• Living rooms
• Open floor plans
• Large basements
• Garages
• Bonus rooms

This 24,000 BTU system delivers strong, even comfort across larger areas.



High-Efficiency Performance That Saves Money

• 18.9 SEER2 cooling efficiency
• 8.7 HSPF2 heating efficiency
• Inverter compressor technology
• Reduced energy consumption

👉 More coverage + efficient operation = long-term savings



True DIY Installation System

Everything needed is included:

• 11.5 ft pre-charged R-454B line set
• Quick Connect® system
• DIYPRO® cable (no conduit required)
• Plug-and-play install

👉 Install it in hours, not days.



Smart Comfort Anywhere

Control your system easily:

• MRCOOL SmartHVAC™ App
• Amazon Alexa compatibility
• Google Assistant compatibility
• Wireless remote included



Built for Long-Term Durability

• Gold Fin® corrosion protection
• Heavy-duty outdoor unit
• Quiet operation (21.5 dBA indoor low)
• DC motor technology



Strong Warranty Protection

• 3-Year Compressor Warranty
• 3-Year Parts Warranty

👉 Built for reliability and peace of mind



KEY FEATURES

• 24,000 BTU Heating & Cooling
• Covers up to 1,050 sq ft
• 230V Power
• 18.9 SEER2 Efficiency
• 11.5 ft Pre-Charged Line Set Included
• R-454B Refrigerant
• DIY Installation System
• Smart App + Voice Control
• Inverter Heat Pump Technology
• Large Space Cooling Solution



FULL TECHNICAL SPECIFICATIONS

Performance

• Cooling Capacity: 24,000 BTU
• Heating Capacity: 25,000 BTU
• SEER2: 18.9
• EER2: 9.7
• HSPF2-4: 8.7



Electrical

• Voltage: 208/230V
• Max Breaker: 20A
• Minimum Circuit Ampacity: 19A



Line Set

• Length: 11.5 ft
• Liquid Line: 3/8”
• Suction Line: 5/8”
• Max Length: 75 ft

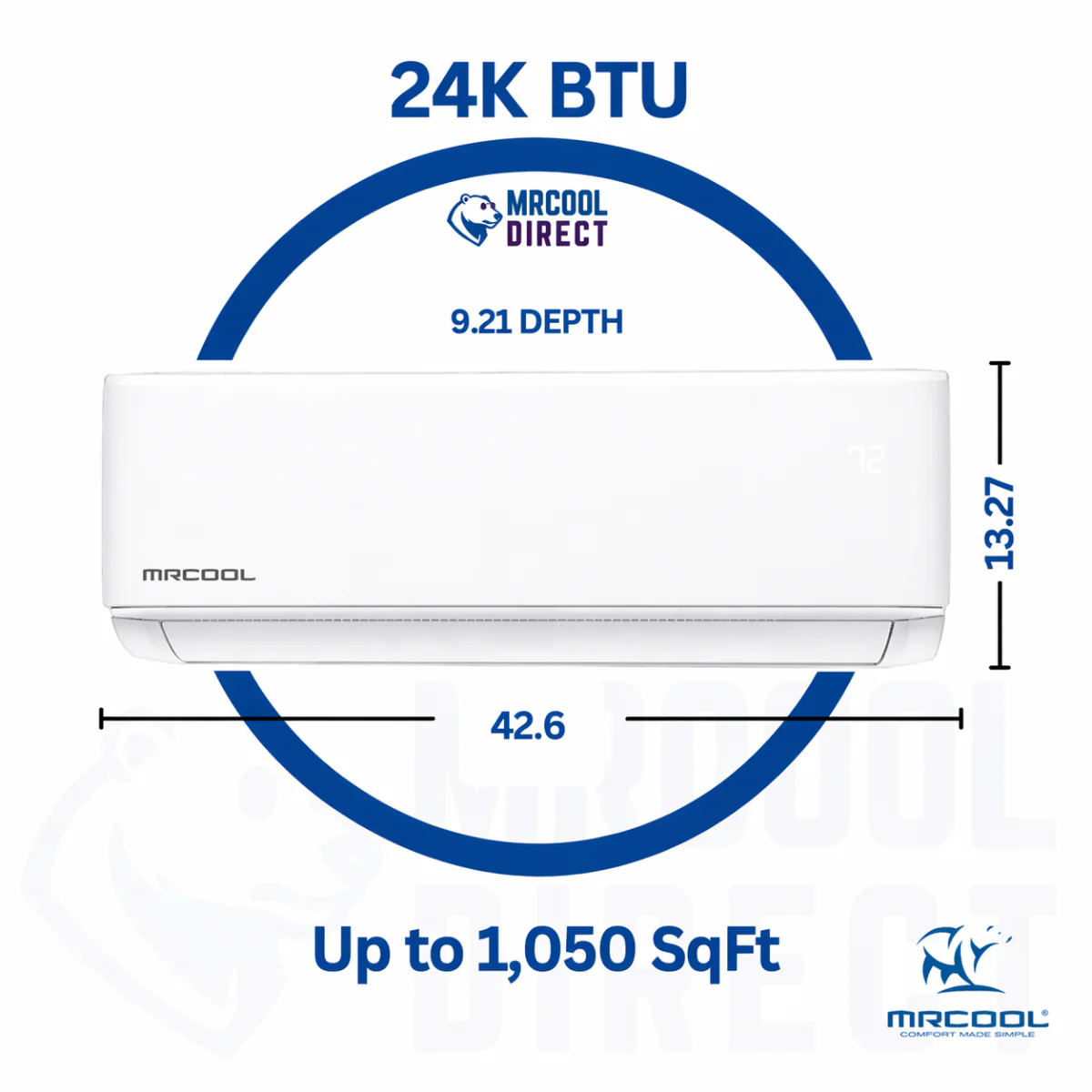

Indoor Unit- EZPRO-24-HP-WMAH-230DE-O

• Sound: 21.5 – 51.5 dBA
• Size: 42.6W x 13.27H x 9.21D
• Weight: 35.49 lbs

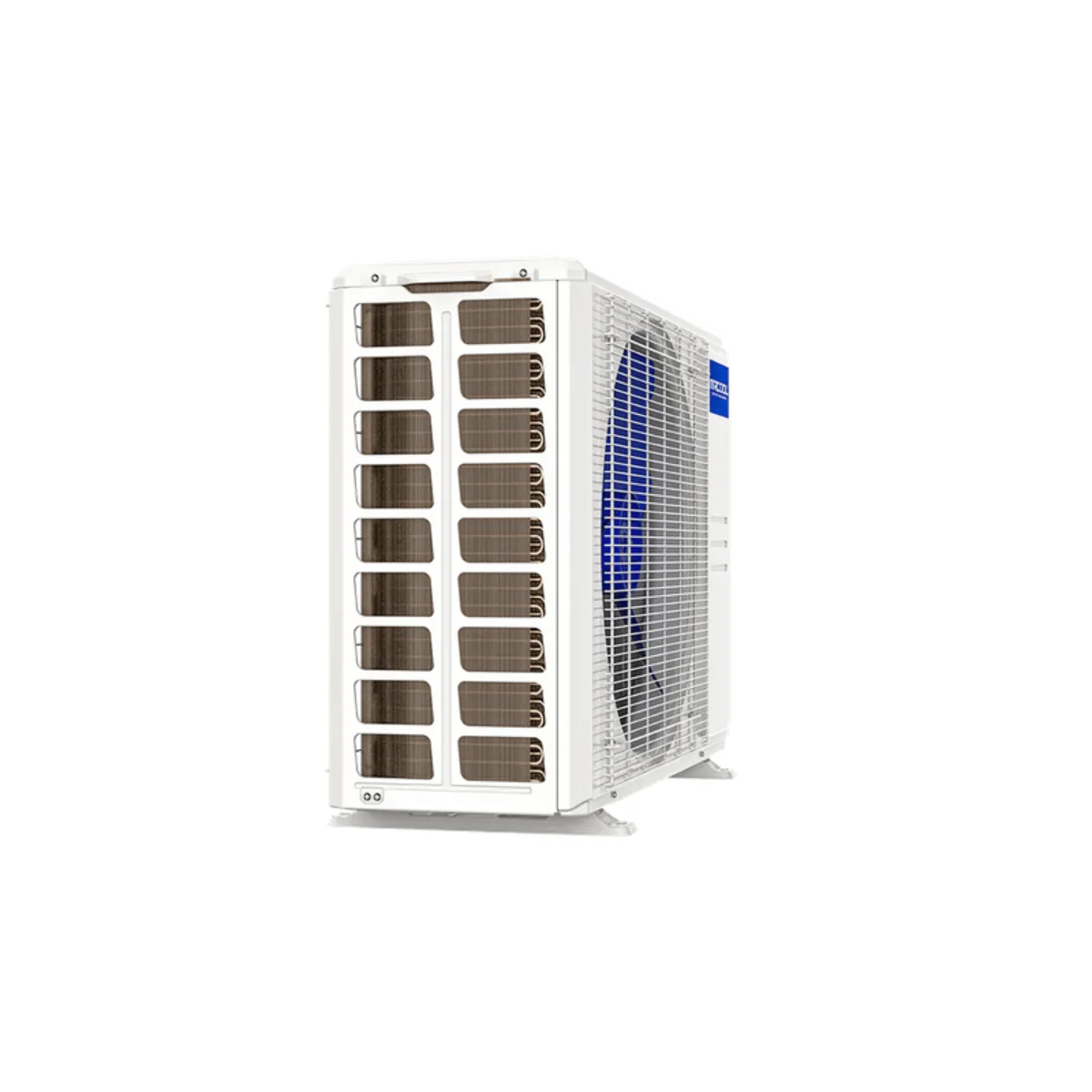

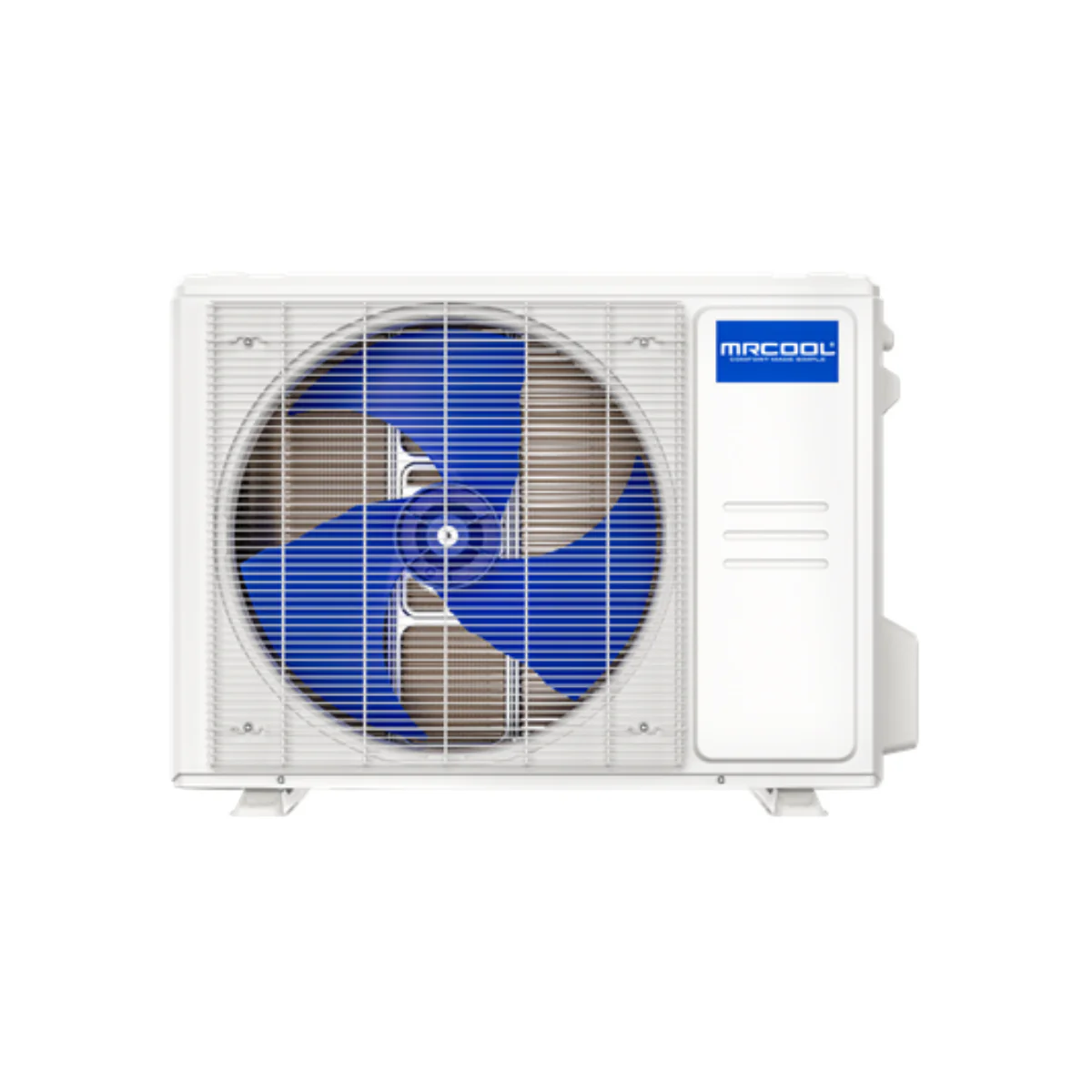

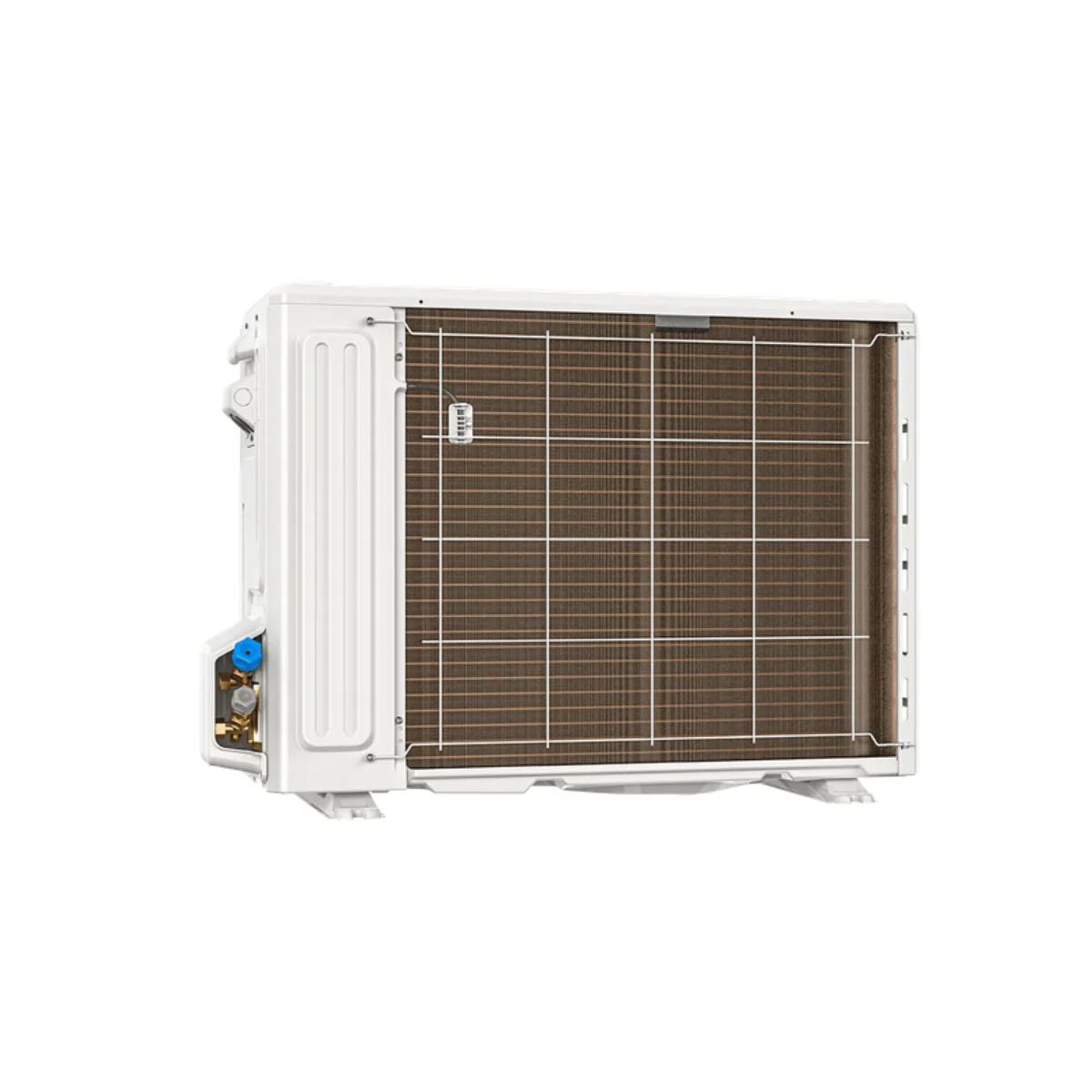

Outdoor Unit- EZPRO-24-HP-C-23011DE-O

• Sound: 61 dBA
• Size: 35.04W x 26.5H x 13.46D
• Weight: 95.9 lbs



Frequently Asked Questions about the MRCOOL® Easy Pro® DIY® 24k BTU 115V DIY Mini Split

Q: Can I install this system myself?

Yes — the pre-charged line set removes the need for HVAC tools.

Q: What size space does this cover?

Up to 1,050 sq ft.

Q: Does this system heat and cool?

Yes — it’s a full heat pump system.

Q: What makes Easy Pro different?

The 11.5 ft pre-charged line set + simplified install.

Q: What power does it require?

208/230V.
